Single Core 240sqmm XLPE Insulated Underground Power Cable

Name: Single Core 240sqmm XLPE Insulated Underground Power Cable
Brand: Qifan
Price: 3 USD

Buy cheap Single Core 240sqmm XLPE Insulated Underground Power Cable product

Certification : ISO, CCC, CE, RoHS, TUV

Model NO. : YJLW02

Wire Core Material : Bare Copper Wire

Model : Yjlw02

Brand : Qifan

Staff : 3048

QC : 260

Standard : IEC 60840 IEC 62067

No. of Core : Single Core

Transport Package : Drum

Specification : 240-2500mm2

Trademark : QIFAN

Origin : China

HS Code : 8544601300

Supply Ability : 50000K Meter/ per Month

Application : Construction, Underground, Industrial, Power Station

Voltage : High Voltage Cable

Current : DC & AC

Insulation Material : XLPE

Sheath Material : PVC

Material Shape : Round Wire

Samples : US$ 0/Meter 1 Meter(Min.Order) | Request Sample

Place of Origin : China

Brand Name : Qifan

MOQ : 100m

Price : usd3-8/meter

Packaging Details : wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request

Delivery Time : 30-45days

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Contact Now

Product Description

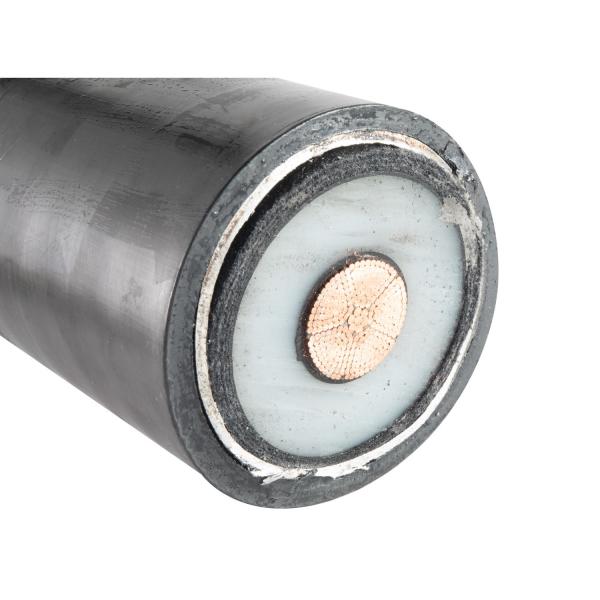

CU/XLPE/CAS/PVC 132kV Single core 240sqmm XLPE Insulated Underground Power Cable

Voltage grade is up to 220kv, cross-section area can be up to 2500 sqmm (copper or aluminiun conductor). Conductor long-time operating temperature is 90 degrees. In short circuit, conductor highest temperature should be not more than 250 degrees.

2. Brief Construction:
Single core
Copper or aluminium conductor
XLPE insulation
Corugation aluminum sheath
PVC or PE sheath

3. Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force

4. MANUFACTURING FEATURES
Conductor
The conductor shall be round compact stranded copper or aluminum wires. The resistance of each conductor at 20ºC shall be in accordance with IEC 60228 standard. The surface of the conductor shall be clean and free from any foreign particles, which may contaminate the insulation or cause high electrical field stress in the conductor screen.
Conductor screen, Insulation and Insulation screen
Extrusion of conductor screen, insulation and insulation screen shall be by single pass, triple extrusion method. Conductor screen, XLPE main insulation and insulation screen shall be produced by triple extrusion and dry curing.
Conductor screen shall consist of semi-conducting tapes applied over the conductor and a continuous layer of extruded semiconducting XLPE compound covering the entire surface area of the conductor and firmly bonded to the inner surface of the insulation.
The insulation shall be XLPE and shall be applied by extrusion and cross-linked to form a compact and homogeneous layer in accordance with the Standards specified. The insulation material shall be of Super Clean polyethylene mixture suitable for cross-linking (XLPE).
Insulation screen shall consist of a layer of extruded non-strippable semi-conducting thermosetting compound.

After triple extrusion, the insulated cores shall be degassed to remove the by-product in the core from the cross-linking process.

Bedding
Semi-conducting water-blocking tapes (swellable tapes) over the insulation screen shall be applied to prevent longitudinal water penetration between insulation screening and metallic sheath. The swellable tape shall cover the entire surface area of the insulation screen.

Metallic sheath
Corrugation Aluminum sheath shall be applied over the semi-conducting water blocking tape to accommodate the required radical water tightness and protect the insulation core.

Outer sheath
The outer-sheath shall be of an extruded layer of black color PVC.It shall be highly chemical resistance and withstand the mechanical force during fabrication, transit,installation and operation.
Outer conductive layer
A coating of Graphite shall be applied over the over sheath to carry out D.C. Voltage Test.

1. The products are mainly complying with IEC 60840 IEC 62067 standard, also can be produced according to OEM requirements and other standards, such as bs standard, DIN standard, ASTM standard, etc.
Single Core 240sqmm XLPE Insulated Underground Power Cable

Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.

Fang Yu (Shanghai) Automation Technology Co., Ltd. Our products are widely used in water conservancy, electricity, home decoration, rail transit, construction engineering, aerospace, new energy, communication, intelligent equipment, offshore engineering, and mining and other fields.
